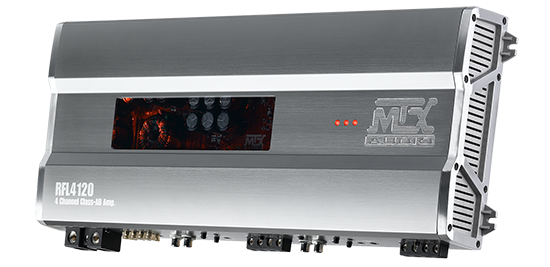

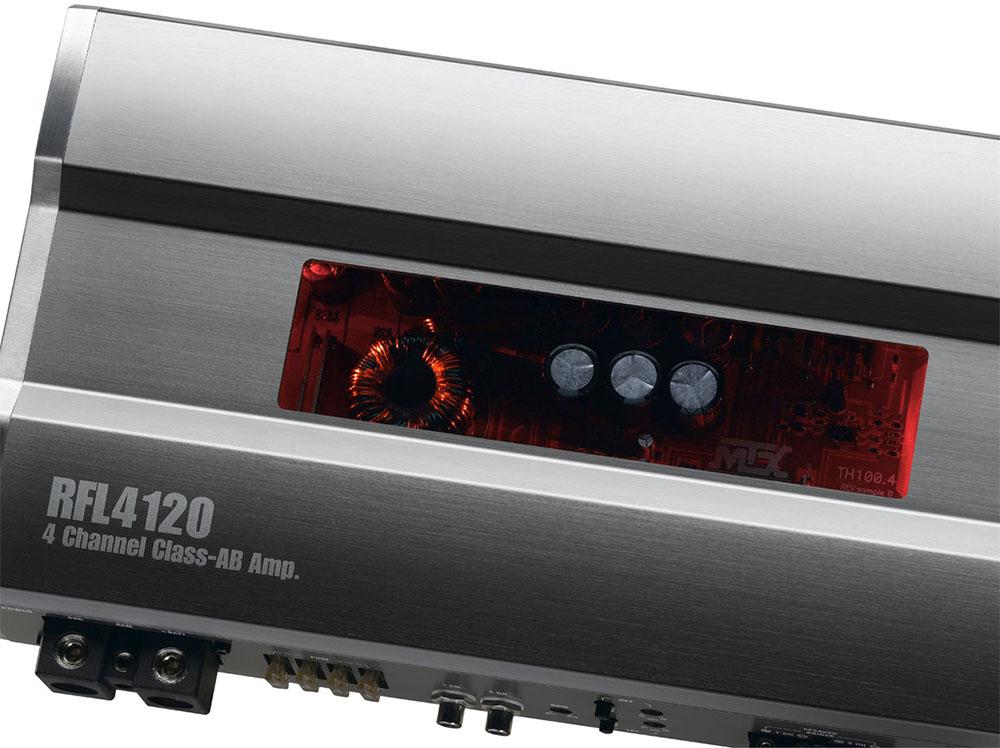

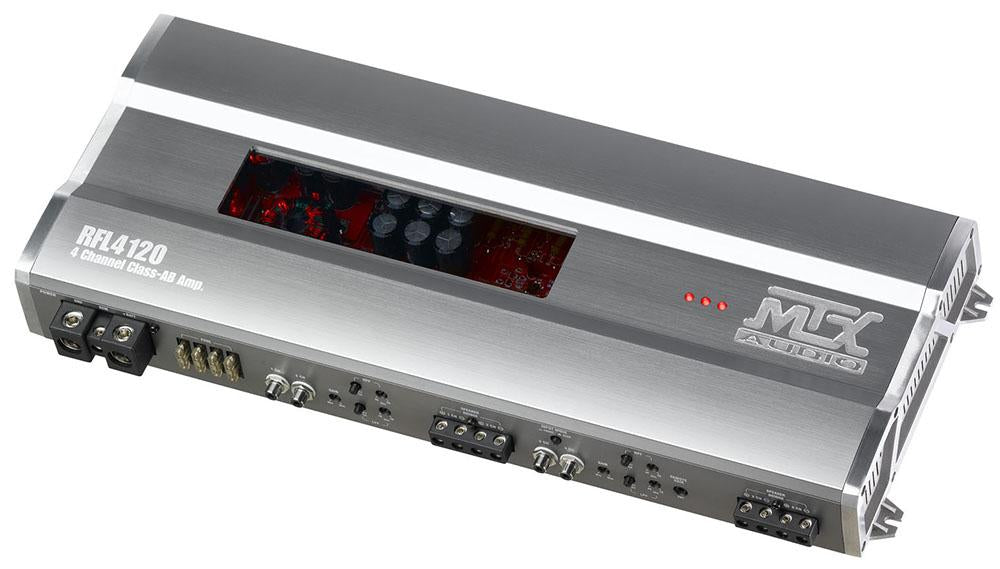

MTX Audio RFL Series 800W 4-Channel Amplifier - RFL4120

The RFL4120 is the new Reference for High End sound quality and High power car audio systems! This amp was designed from the ground up for the high end audiophile, with its almost unlimited output power this amp is also a joy for the fanatic that wants it LOUD. The ultimate amp to generate the best sound stage and imaging in your car and the best companion for the RFL4001D to create the Ultimate car audio system!

Features

• High End amplifier ; high end sound quality, high end components and high end construction.
• Can be used in 4, 3 or 2 channel mode.
• Flexible active crossover with all the filter functions you need (High Pass, Low Pass and Band Pass variable from 40 to 5000Hz).
• EBC (External Bass Control) for channel 3 and 4.
• 50mm2 power connections.

Specifications RFL4120

• Class AB 4 channel amplifier
• CEA2006 certified output power :
- 4 x 200 Watts RMS @ 2Ω THD+N ≤1%
- 4 x 120 Watts RMS @ 4Ω THD+N ≤1%
- 2 x 400 Watts RMS bridged @ 4Ω THD+N ≤1%
• Active crossover :
- High Pass (HPF) 12dB/oct variable from 40Hz to 5000Hz
- Low Pass (LPF) 24dB/oct variable from 40Hz to 5000Hz
- Band Pass (BPF) 12dB-24dB/oct variable from 40Hz to 5000Hz
• Signal/noise ratio (1 Watt) : > 98dB
• THD+Noise (Distortion) (1 Watt) : ≤ 0,05%
• Frequency response (±1dB) : 10Hz-90000Hz
• RCA input sensitivity : 200mV - 6V
• Dimensions : 525mm x 204mm x 59mm
