Description

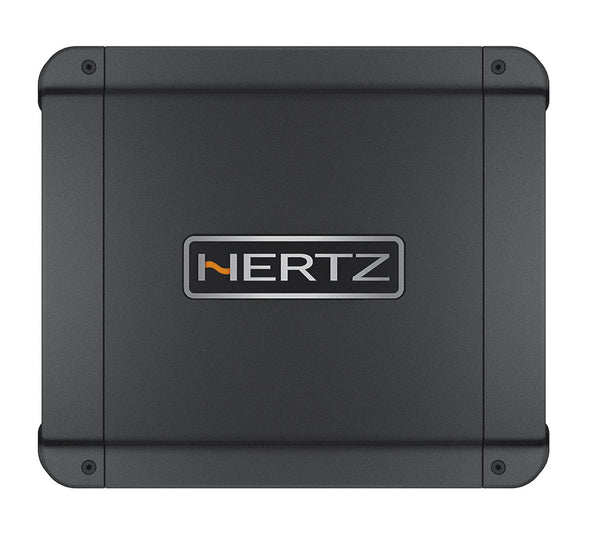

HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system.
Specifications
Channel mode: 4 - 3 - 2
Output Power (RMS) @ 14.4 VDC
4 Ch: 85 W x 4 (4 Ω)
4 Ch: 145 W x 4 (2 Ω)
Filters
Bypass: Yes
Hi-Pass: A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
Lo-Pass: A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
Band-Pass: -
Subsonic: -
Distortion - THD (100Hz @ 4Ω): 0,02 %
S/N Ratio (A weighted @ 1V): 100 dB
Damping factor (100Hz @ 4Ω): 200
Size W x D x H mm: 215 x 190 x 50
Technologies
REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.
COMPLETED FILTER SECTION
Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.
HCP ELECTRONICS
Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105.
ART
Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.
