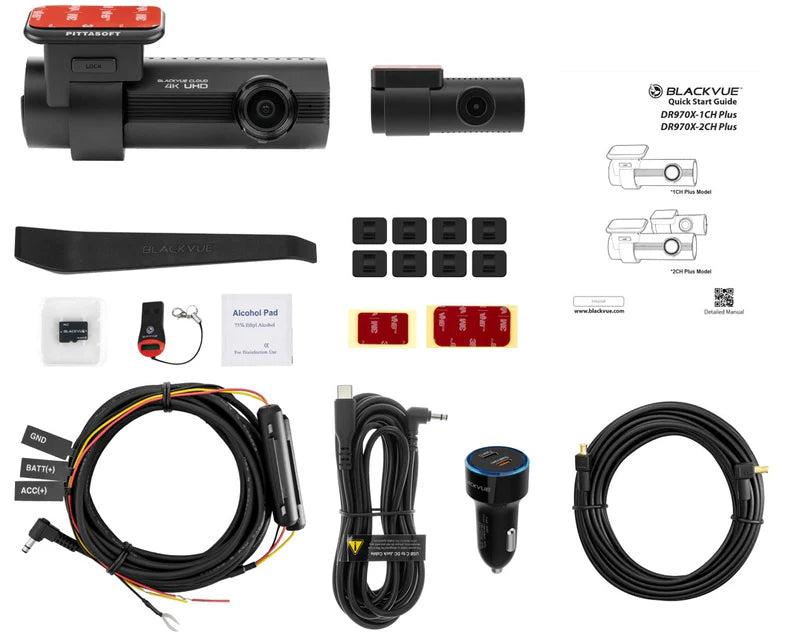

What's included,

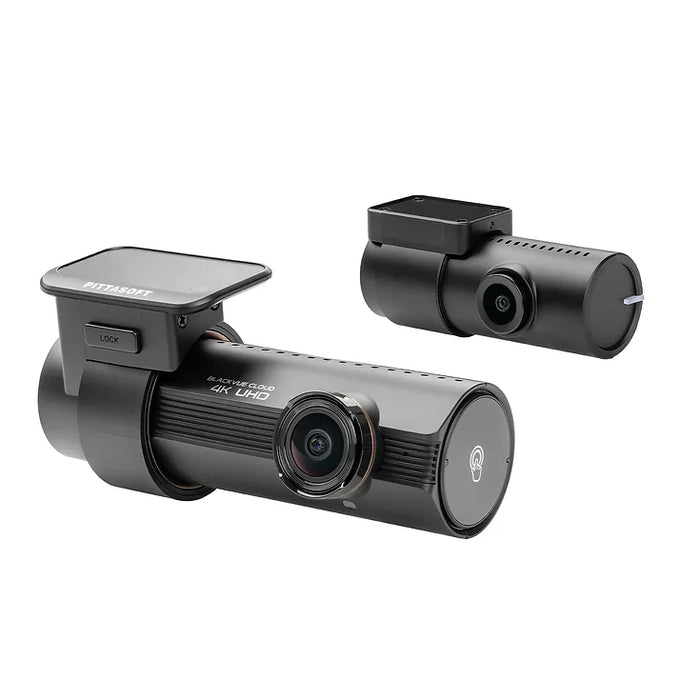

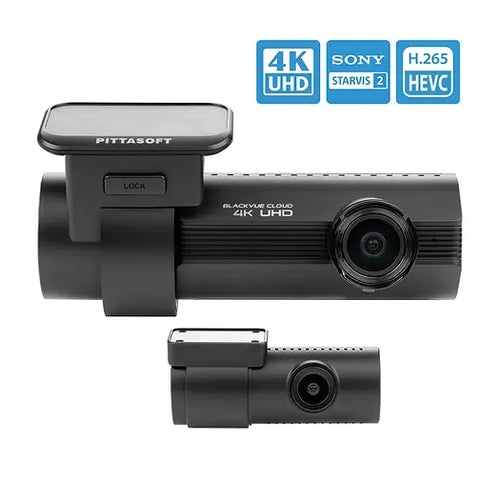

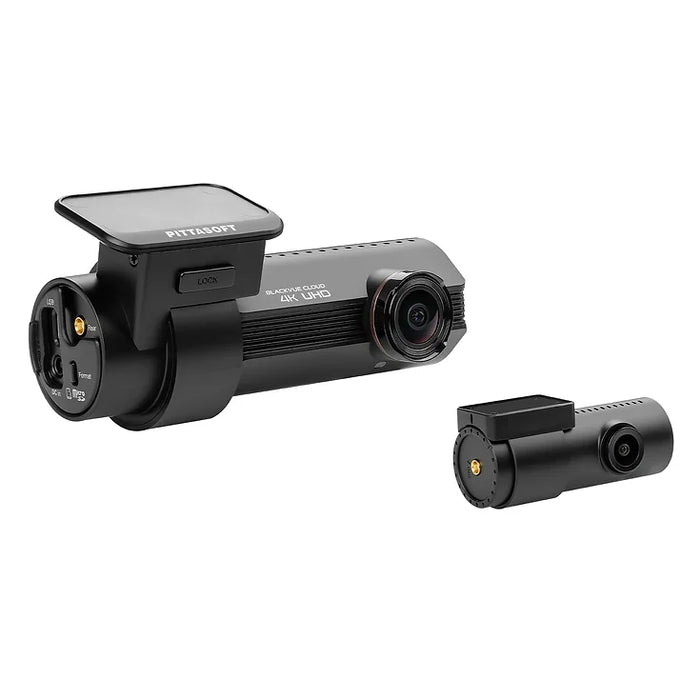

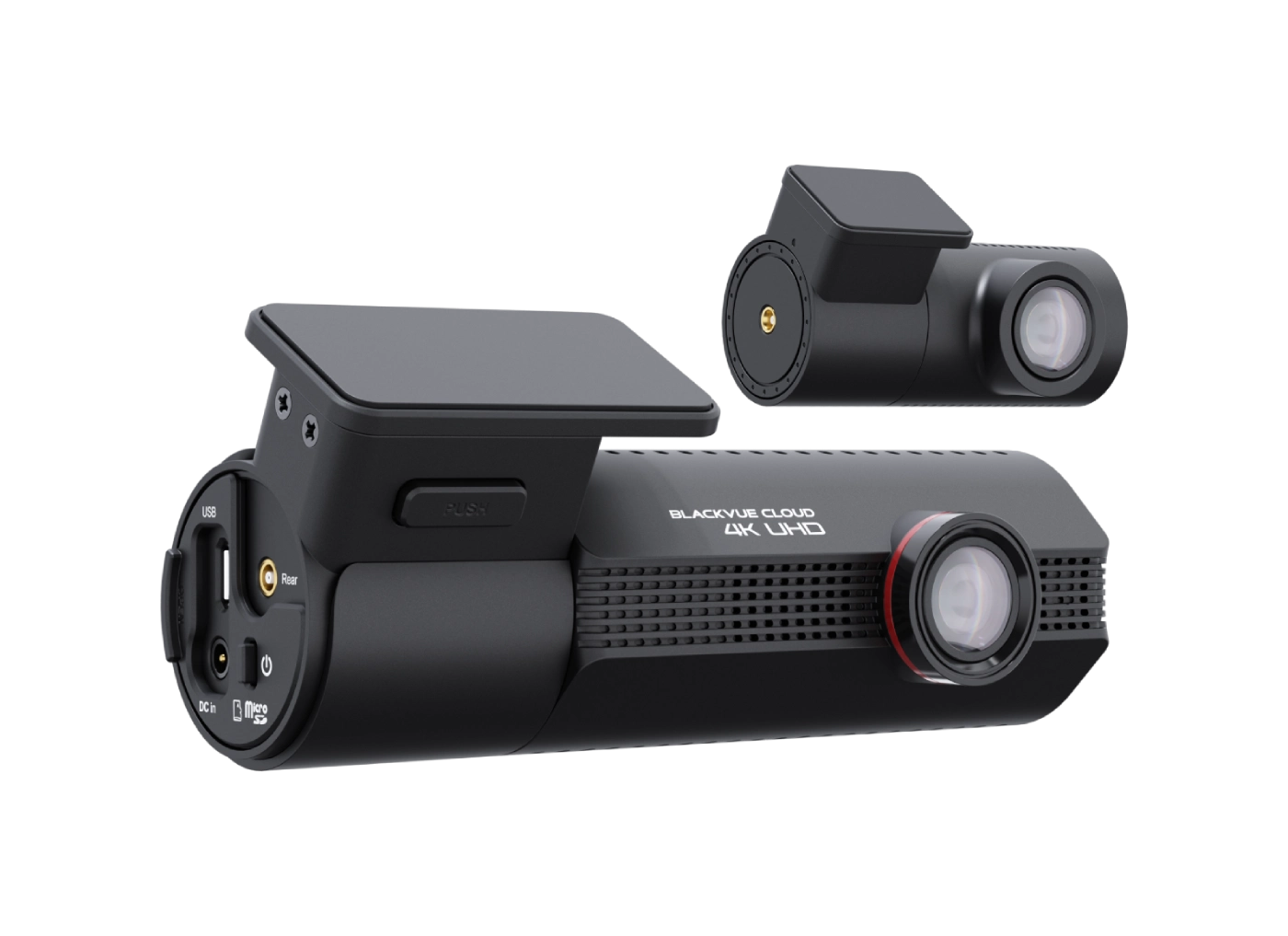

Front Camera
Rear Camera
Quick start guide and User guide
Cable clips (8EA)
microSD card
microSD card reader
Spare mount sticky pads
Coaxial Cable (6m)
Hardwiring power cable
Cigarette lighter power adapter
Pry tool
Specifications,

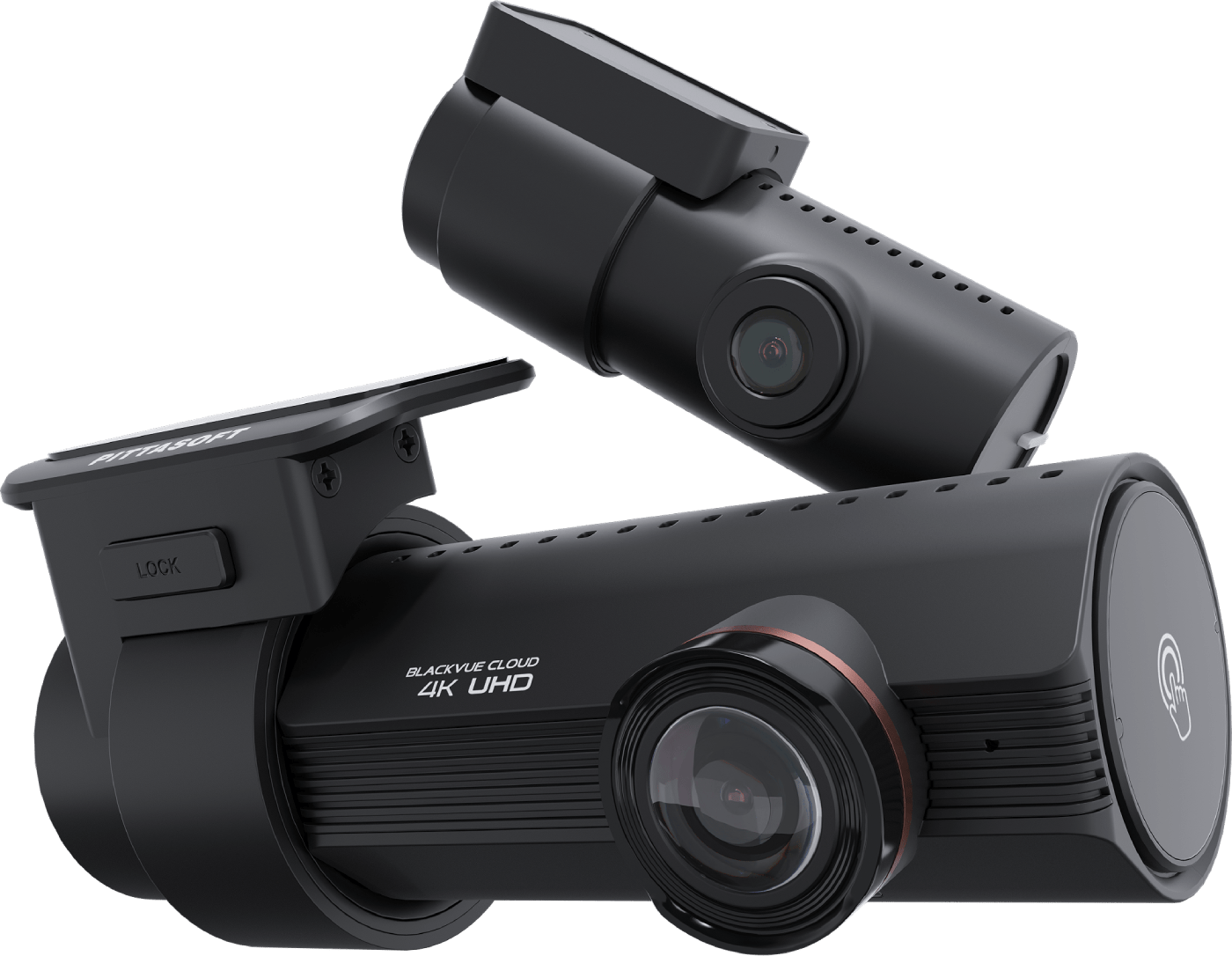

- Model Name: DR970X-2CH Plus
- Channel: 2CH
- Highlights: 4K UHD (Front) + Full HD (Rear), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional)

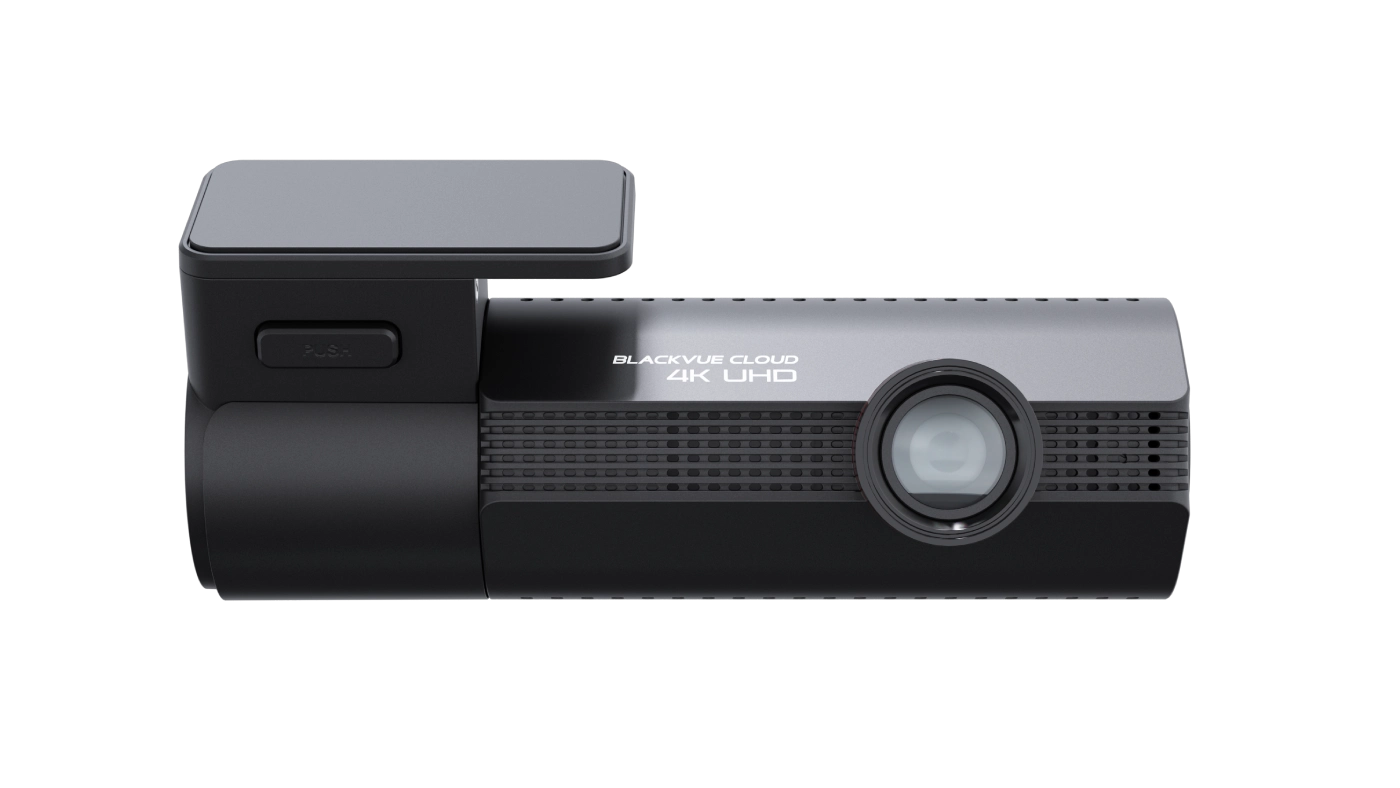

- Product Dimensions: Front: Black / 118.6mm(L) x 47.4mm(W) x 36mm(H) / 108g Rear: Black / 67.3mm(L) x 28mm(W) x 25mm(H) / 25g
- Rear Camera Connection: Coaxial cable
- Memory Support: microSD card up to 512GB
- Recording Modes: Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
- Parking Mode: YES (hardwiring cable included)
- Parking Mode Event Voice Notifications: YES
- Imaging Sensor: Front: STARVIS 2 CMOS Sensor (Approx. 8.4 M Pixel) Rear: STARVISTM CMOS Sensor (Approx. 2.1 M Pixel)
- Viewing Angle: Front: Diagonal 146°, Horizonal 125°, Vertical 68° Rear: Diagonal 131°, Horizonal 107°, Vertical 55°
- Resolution Frame Rate: Front: 4K (3840 x 2160) @ 30 fps Rear: Full HD (1920 x 1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming.
- Video Codec: H.265 (HEVC) / H.264 (AVC)
- Image Quality and Bitrate Front/Rear: Highest (Extreme): 60+10 Mbps Highest: 25+10 Mbps High: 12+8 Mbps Normal: 8+6 Mbps *60Mbps bitrates only support in H.265(HEVC).
- Format Free: YES (Adaptive)
- Event File Overwrite Protection: YES (up to 50)
- SD Card Failure Alert: YES
- Scheduled Reboot: YES
- Video File Extension: MP4
- Wi-Fi: Built-in (802.11 a.b.g.n.ac)
- Cloud Compatible: YES
- GPS: Built-in (Dual Band : GPS, GLONASS)
- Microphone: Built-in
- Speaker: Built-in
- Impact Sensor: 3-Axis Acceleration Sensor

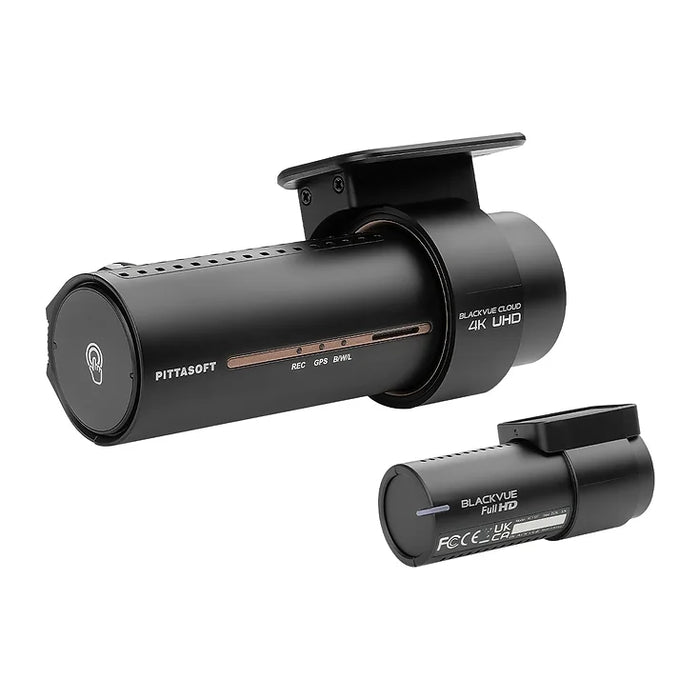

- LED Indicators: Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED

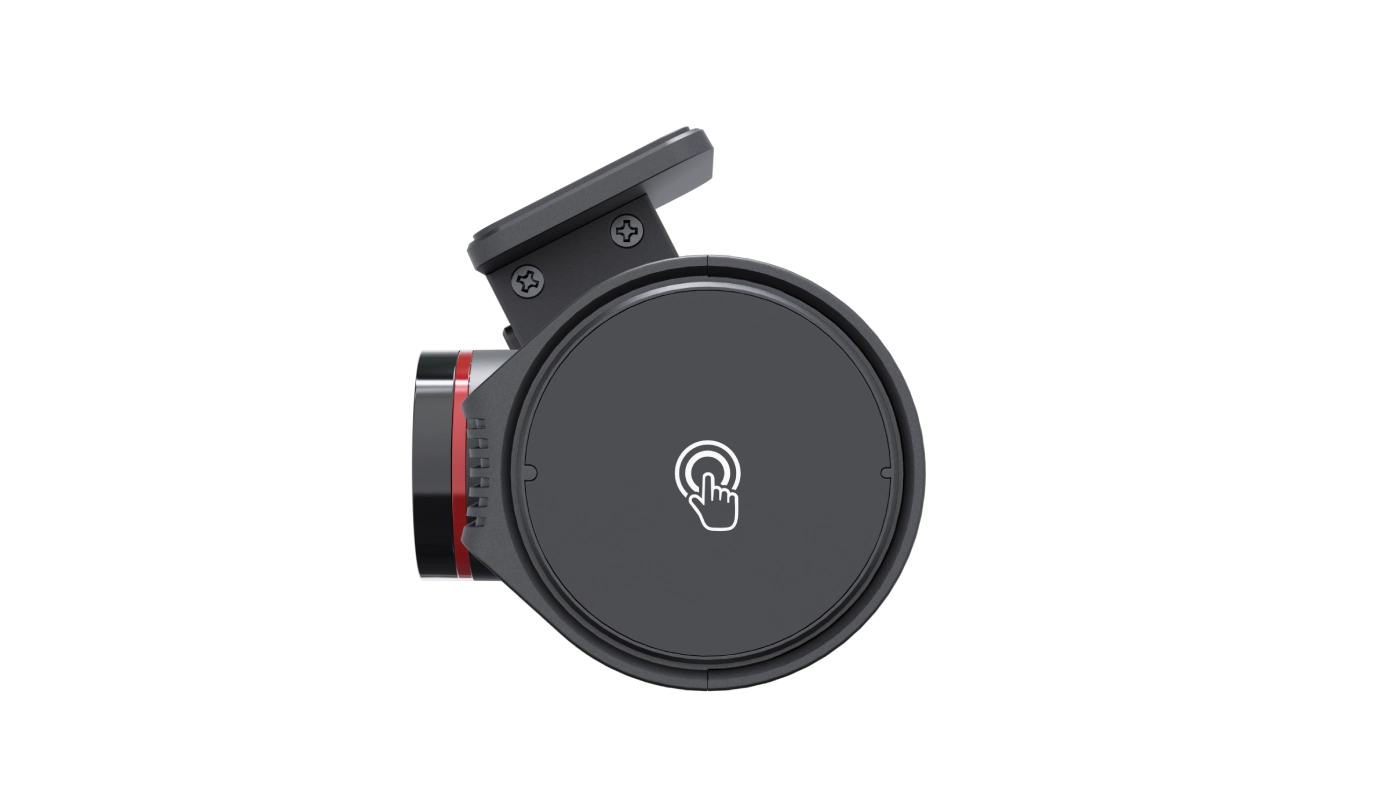

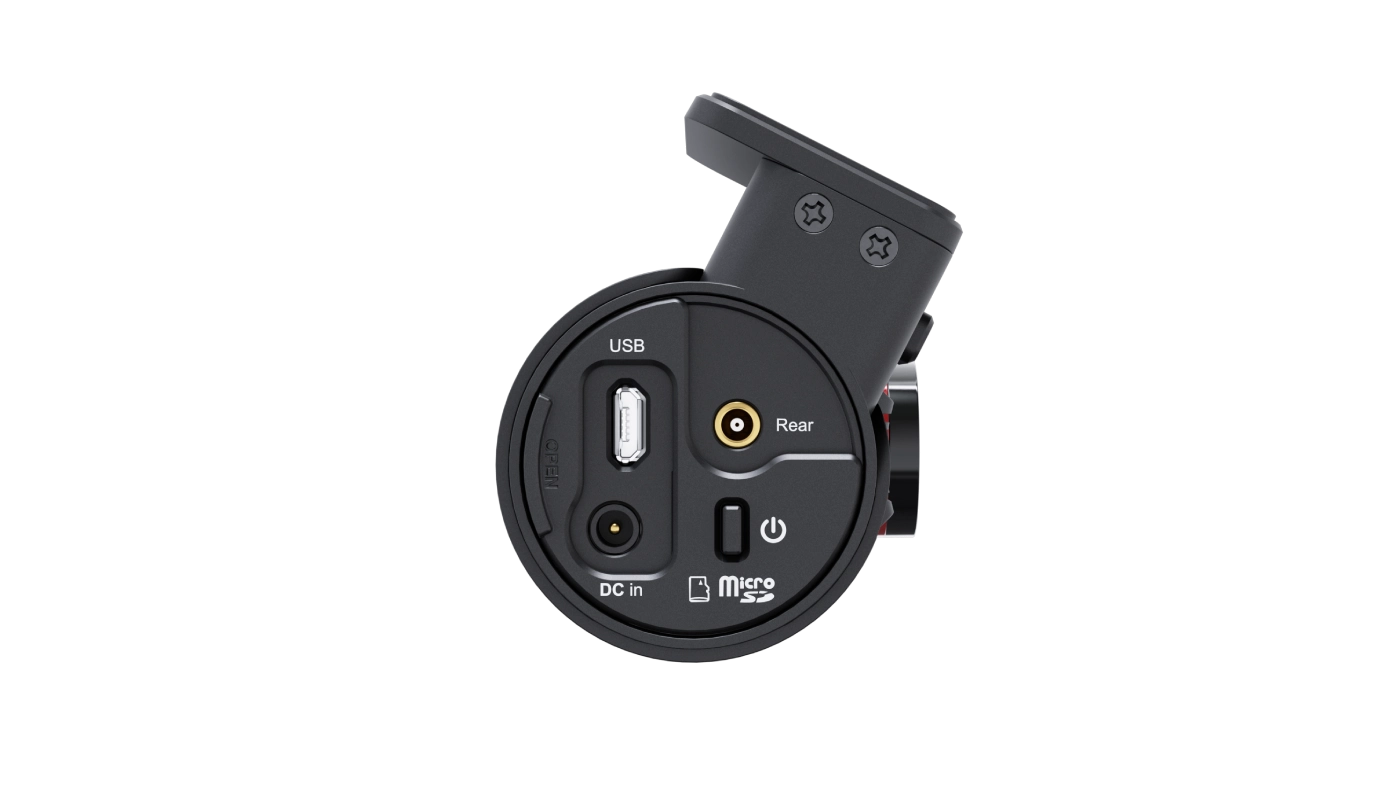

- Button: Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
- Operation Temperature: -20 °C − 70 °C (-4 °F − 158 °F)
- Storage Temperature: -20 °C − 80 °C (-4 °F − 176 °F )
- High Temp Cut Off: Approx. 75 °C (167 °F)
- Backup Battery: Built-in supercapacitor
- Input Power: DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
- Power Consumption Hour: Normal Mode (GPS On/2CH): Avg. 480mA /12V Parking Mode (GPS Off/2CH): Avg. 370mA /12V * Actual power consumption may vary depending on use conditions and environment.
- Certifications: Front : FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC Rear : FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
- Software: BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
- Application: BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
- Others: Adaptive Format-Free File Management System
- Bluetooth: Built-in (V2.1+EDR/4.2)
- LTE: External (Optional)
